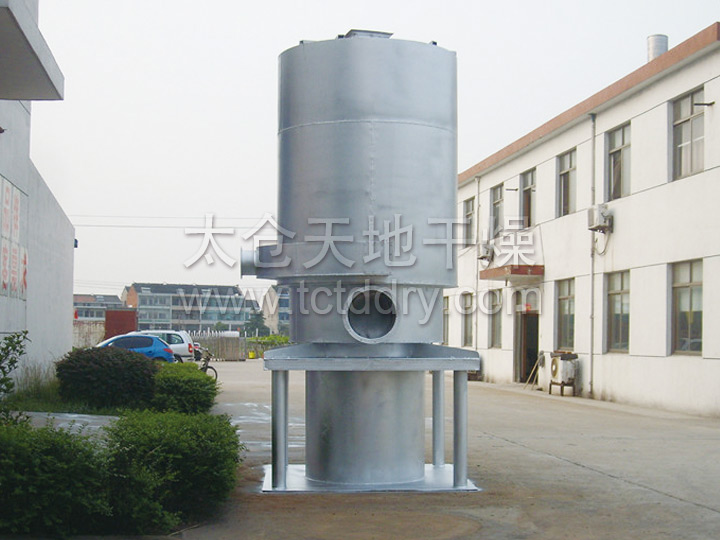

JRF Coal Combustion Hot Air Furnace

WORKING PRINCIPLE

The furnace combines the combustion with heat exchange in one and using the latest indirect heating technology that heat exchange is taken place at the high temperature position of the furnace. The smoke and air are divided to different air ducting to avoid the pollution on heating process. The heat efficiency rate is high (up to 60-75%). The temperature increase is fast. The furnace is easy for installation and reliable for operation, and the price is low (compare to the one ton boiler, the price of this heating system is only half of the price for boiler heating system).

FEATURES

This furnace has the high temperature resistant so that its using life is much longer than the pipe arrangement hot air furnace. And it uses longitudinal splashing heat radiation fin and the negative pressures smoke elimination method. There is no dust collected on the heat exchange position so it’s no need to carry out the cleaning. The heat feature is stable. Various coal and wood can be used as the fuel. The furnace is equipped with the air leading device to ensure the combustion is complete. The technology of this furnace has reached the advanced level in China.

APPLICATION

This furnace is versatile hot air equipment. It is used as a heating device to the drying equipment. It is widely used for the heating and moisture removing for the grain, seed, feed, fruit, de-watering vegetable, mushroom, edible fungus, tremella, tea, tobacco leaf, and other farming products. It also used for the products in food, medicine, chemical, light and heavy industries.

Technical Parameter

Name \ Spec	JRF-15	JRF-20	JRF-30	JRF-40	JRF-60	JRF-80	JRF-100
Diameter of inner barrel (mm)	760	760	1170	1170	1470	1670	1870
Diameter of outer barrel (mm)	1280	1280	1840	1840	2200	2460	2700
Total height (mm)	3500	3500	4260	4760	4810	5110	5310
Total weight (T)	3.15T	3.65T	6.8T	7.5T	9.8T	11.7T	13.5T
Diameter of hot air outlet (mm)	300	300	500	500	500	600	600
Height of hot air outlet (mm)	1585	1585	1670	1670	1670	1770	1770
Diameter of flue outlet (mm)	250	250	250	250	250	300	320
Height of flue outlet (mm)	2050	2050	2220	2220	2220	2385	2385
Coal consumption (per hour)	XZD/G Φ578					XZD/G Φ810
Coal combustion value	43kg	57kg	85kg	115kg	170kg	230kg	286kg
Combustion combustion value (kg)	5000kcal/h
Heat efficiency	70-78%					75-80%
Suction fan	Y5-47-3.15C -1.5KW	Y5-47-4C -2.2KW	Y5-47-4C -3KW		Y5-47-4C -4KW	Y5-47-5C -7.5KW	Y5-47-5C -7.5KW

ATTENTION

1. The environmental standard is calculated based on the temperature at 18°C± 2°C and the heat value of the coal to 5000 Kcal/kg.
2. The hot air temperature is determined by the output of the air volume. The temperature of the hot air for Model JRF4 can reach above 200°C and the temperature of the hot air for Model JRF5 and JRF6 reach above 300°C (special manufacturing up to 500°C), the temperature can be adjusted according to user needs.
3. The standard height of smoke window: JRF4 model is 3 to 5 meters; JRF5 and JRF6 model are 5-8 meters.
4. The overall dimensions shall refer to the installation diagram.
5. The height of refractory layer for model JRF 4-4 is 0.5; the refractory layer can be installed on site.
6. JRF6 spec is the chain-furnace arrangement-spec combustion device.
