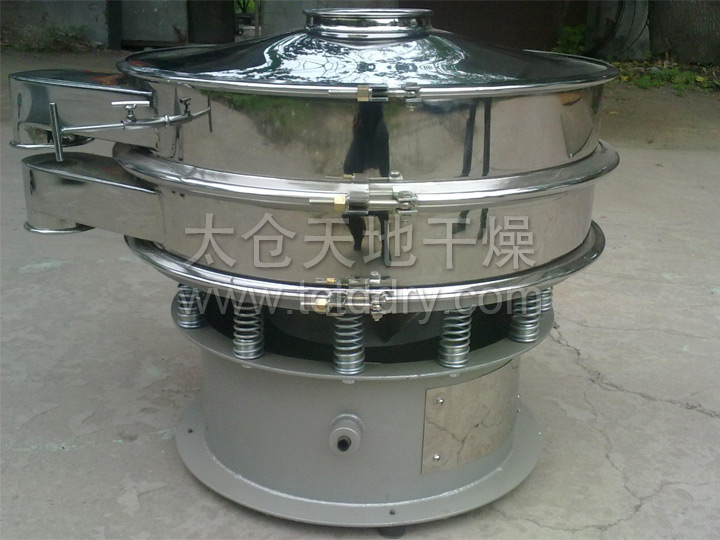

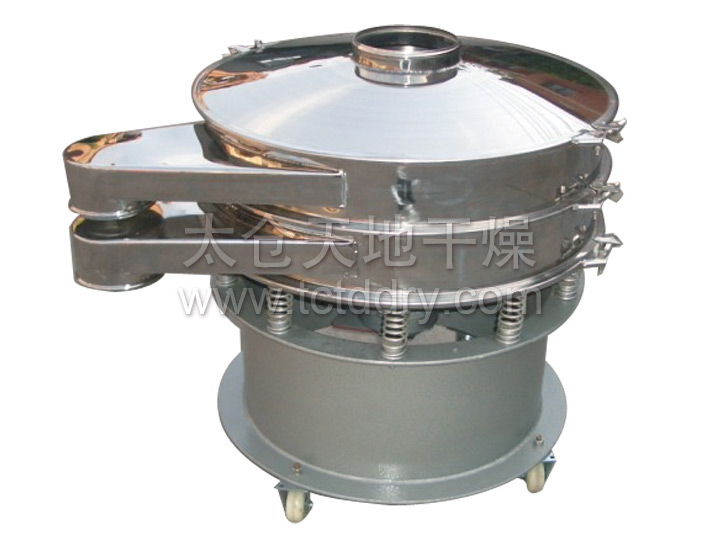

ZS Circular Vibrating Sieve

Description

This machine consists of hopper, vibrating chamber, couple and motor. There are eccentric wheel, rubber parts, main shaft, and shaft-bearing in the vibration chamber .The adjustable eccentric hammer is driven to the center line through the motor and generates centrifugal force under the unbalance condition to change the material strength and form an orbit vortex. The amplitude of the hammer can be adjusted according to the properties of material and the mesh screen. It is designed with compact structure, dust free, noise-free, high output capacity, low energy consumption, and easy to maintenance.

Technical Parameter

Spec	ZS-350	ZS-515	ZS-650	ZS-800	ZS-1000	ZS-1500
Capacity (kg/h)	40-500	60-600	80-800	150-1200	300-2000	350-2800
Meshes	12-1200	12-200	12-200	12-200	5-325	5-325
Power (kw)	0.55	0.55	0.55	0.75	1.5	2.2
Speed (rpm)	1380	1370	1370	1500	1500	1500
Overall dimension (mm)	540×540×1060	710×710×1290	880×880×1350	1000×1000×1000	1100×1100×1200	1600×1600×1200
Weight (kg)	100	180	250	300	350	400
