TJG Fixed Lifting Feeder

DESCRIPTION

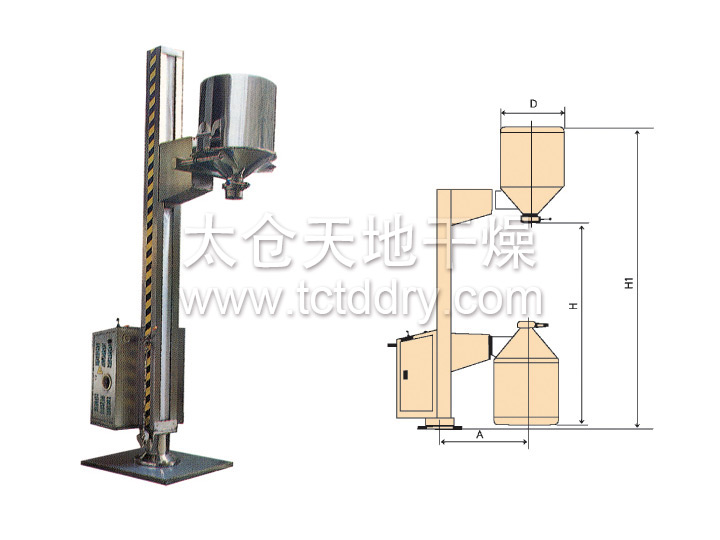

TJG Fixed Lifting Feeder consists of two parts, the lifting machine and base. The lifting machine is composed of the rack, hydraulic lifting system and the hopper-turning mechanism. The material tank and the hopper of the lifting machine shall be connected when before operation. And then start the control rod for lifting the hopper and the tank together. After starting the control rod for turning, the material tank will turn 180 degrees to a position with the bottom of the tank upward and the material can be easily fed into the required equipment.

Technical Parameter

Model&specs\Parameter	H	A	D	H1
TJG-50	2050	650	Φ485	2900
TJG-100	2050	750	Φ590	2900

Technical Parameter

Name	Volume (kg)	Specification (dia×high) (mm)	Wall Thichness (mm)

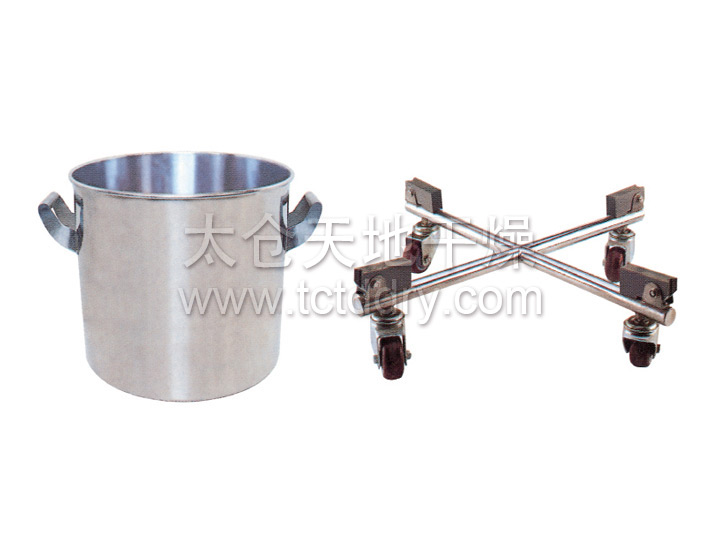

Material tank	50	Φ485×460	0.8
	100	Φ590×550	0.8
Special trolley for material tank	50-100	Φ500×600
