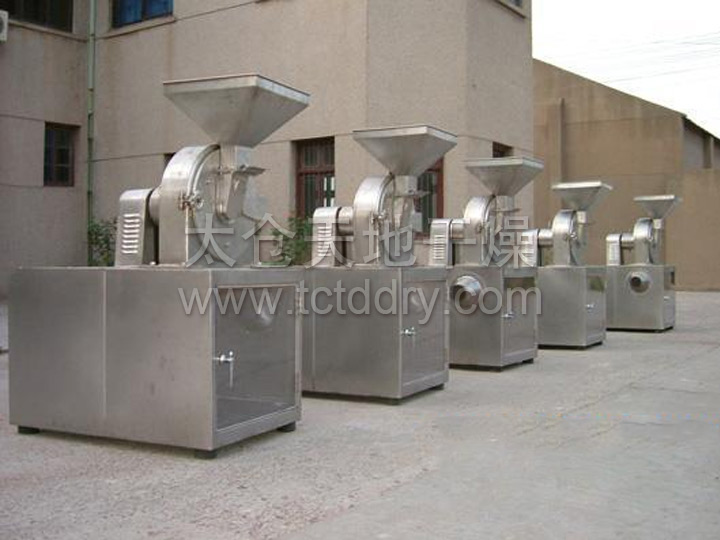

30B High-Effective Universal Grinder

APPLICATION

The machine (set) is widely used for the fragile materials in pharmaceutical, chemical, foodstuff, and pesticide industries.

WORKING PRINCIPLE

This machine utilizes the high-speed relative motion between movable and fixed fluted disc to crush the raw material to be crushed and creates friction force. The crushed raw material can be discharged through grinding chamber. Moreover, different size of raw material can be got through exchanging screen with different mesh. This machine is in conformity with the requirements of GMP and it is made of stainless steel. No dust emissions during production process.

Technical Parameter

Spec	Unit	20B/ 20B Set	30B/ 30B Set	40B/ 40B Set	60B/ 60B Set
Productive capacity	kg/h	60-150	100-300	160-800	500-1500
Speed of main shaft	r/min	4500	3800	3400	2800
Feeding granule size	mm	6	10	12	15
Finesee of pulverization	mesh	60-150	60-120	60-120	60-120
Grinding motor power	kw	4	5.5	11	15
Fan power	kw	1.5	1.5	1.5	2.2
Weight	kg	250	320	550	680
Overall dimension (L×W×H)	mm	550×600×1250	600×700×1450	800×900×1550	1000×900×1680

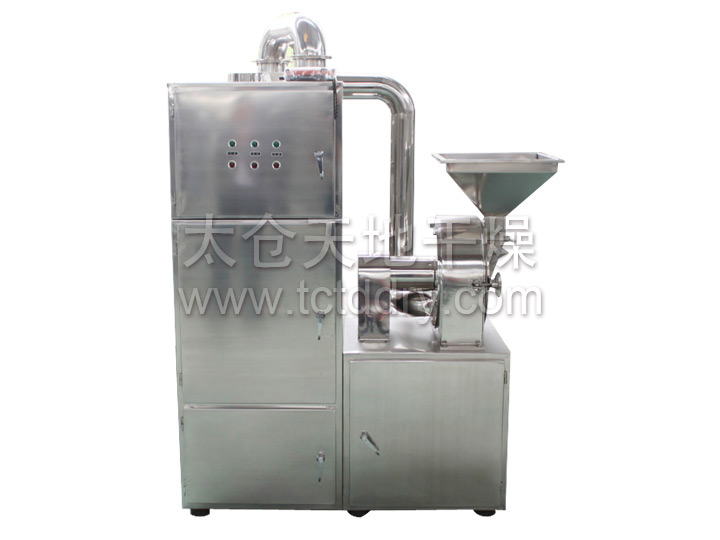

Overall dimension (set) (L×W×H)	mm	1100×600×1650	1200×650×1650	1350×700×1700	1550×1000×1750
