Introduction:

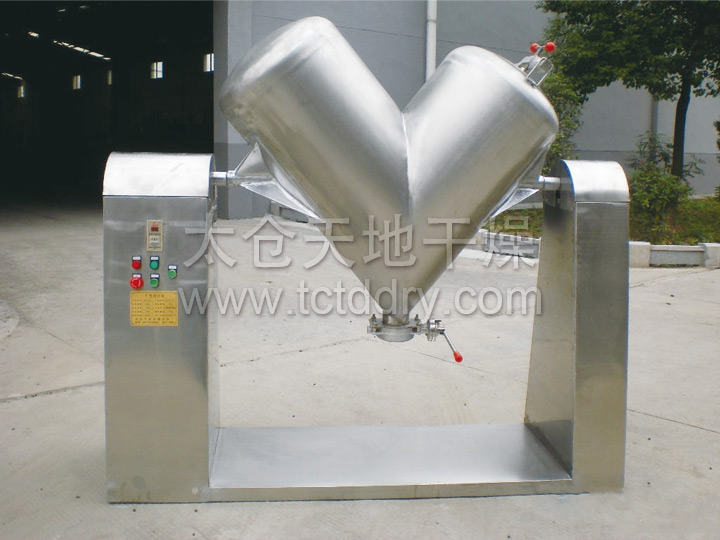

CharacteristicsThe structure of mixing barrel is unique and the mixing efficiency is high and no dead corners. The barrel is made of stainless steel with polished treatment so the appearance is beautiful. The mixing uniformity is good and it has a wid…
Spec \ Item |
Total Volume
(L)
|
Material Capcity
(L)
|
Working Capacity
(kg)
|
Rotating Speed
(rpm)
|
Power
(kw)
|
Weight
(kg)
|
0.05 | 50 | 25 | 15 | 25 | 0.55 | 500 |
0.15 | 150 | 75 | 45 | 20 | 0.75 | 650 |
0.3 | 300 | 150 | 90 | 20 | 1.1 | 820 |
0.5 | 500 | 250 | 150 | 18 | 1.5 | 1250 |
1 | 1000 | 500 | 300 | 15 | 3 | 1800 |
1.5 | 1500 | 750 | 450 | 12 | 4 | 2100 |
2 | 2000 | 1000 | 600 | 12 | 5.5 | 2450 |
3 | 3000 | 1500 | 900 | 9 | 5.5 | 2980 |
4 | 4000 | 2000 | 1200 | 9 | 7.5 | 3300 |
5 | 5000 | 2500 | 1500 | 8 | 7.5 | 3880 |
6 | 6000 | 3000 | 1800 | 8 | 11 | 4550 |
8 | 8000 | 4000 | 2400 | 6 | 15 | 5200 |
10 | 10000 | 5000 | 3000 | 6 | 18.5 | 6000 |
