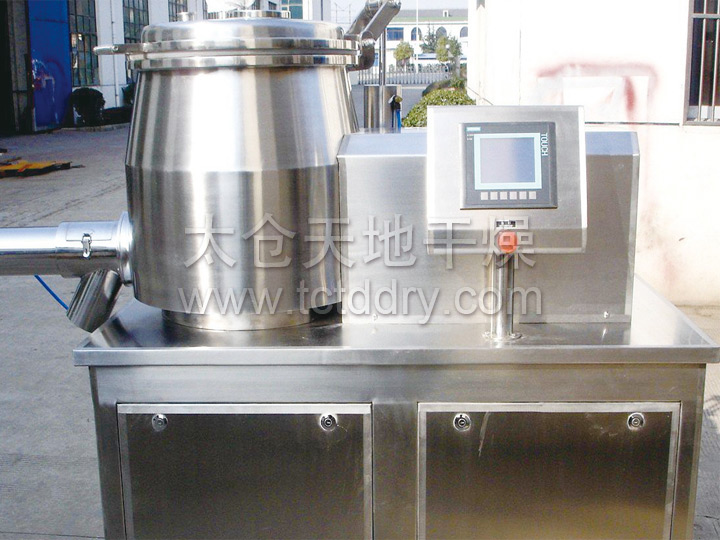

GHL High-Speed ​​Mixing Granulator

Working Principle

The powder raw material and adhesive in a cylinder are fully mixed at the bottom to become a humid soft material. Then it is cut by high-speed cutter and become uniform granules .

Characteristics

◎The machine adopts horizontal cylinder structure, its structure reasonable;
◎Air lled seal shaft for to drive. When washing , it can be changed to water;
◎Fluidized Granulation, the granule is around ball shape. Its ow ability is good;
◎Compared to traditional process, 25% of adhesive can be reduced and the drying time is short;
◎The dry mixing time is 2 minutes and the granulating time is 1-4 minutes;
◎Compared to the traditional process , 4-5 times of ef ciency is raised;
◎Dry mixing ,humid mixing and granulating are nished in the same sealed container;
◎The whole operation has strict safe and protective measures;
◎Jacket type might be adopted on request.

Technical Parameter

Type	A	B	C×D	E	F
50	320	950	1250×800	970	1650
150	420	1000	1350×800	1050	1750
200	500	1100	1650×940	1450	2050
250	500	1160	1650×940	1400	2260
300	550	1200	1700×1000	1400	2310
400	670	1300	1860×1100	1550	2410
600	750	1500	2000×1230	1750	2610

Name	Type
	50	150	200	250	300	400	600
Volume (L)	50	150	200	250	300	400	600
output capacity (kg/batch)	15	50	80	100	130	200	280
admix speed (r.p.m)	200/400	180/270	180/270	180/270	140/220	106/155	80/120
admix power (kw)	4/5.5	6.5/8	9/11	9/11	13/16	18.5/22	22/30
cutting speed (r.p.m)	1500/3000	1500/3000	1500/3000	1500/3000	1500/3000	1500/3000	1500/3000
cutting power (kw)	1.3/1.8	2.4/3	4.5/5.5	4.5/5.5	4.5/5.5	6.5/8	9/11
compressed air consumption (m3/min)	0.6	0.9	0.9	0.9	1.1	1.5	1.8
weight (kg)	500	800	1000	1300	1800	2200	2600
