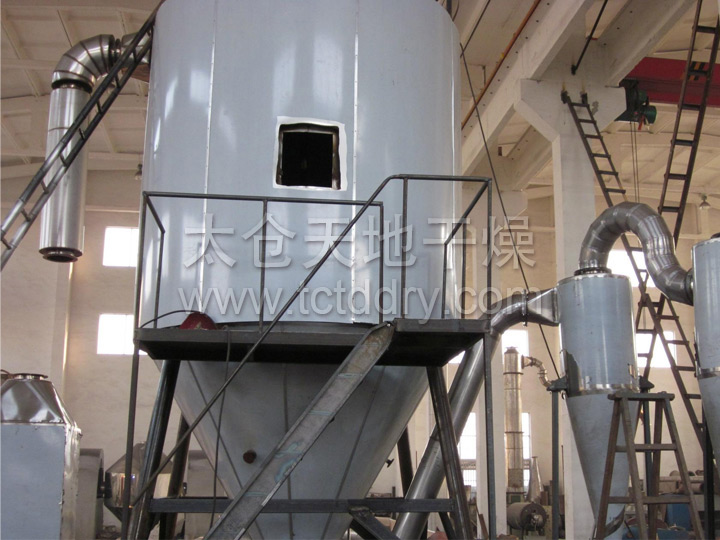

LPG High-Speed Centrifugal Spray Dryer

DESCRIPTION

The spray drying technology is the widest used in the liquid shaping technology and in the drying industry. It is most suitable for producing powder, particle, or block solid products from materials of solution, emulsion, soliquoid and pumpable paste states. Therefore, the spray drying is one of the most desired technologies when the particle size and distribution of the final products, their residual water contents, and the stocking density and the particle shape can meet the precision standards.

WORKING PRINCIPLE

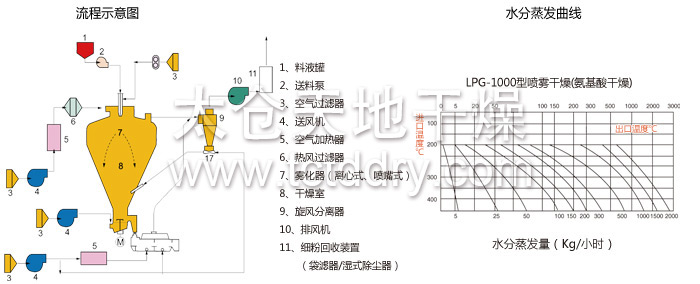

The air enters into the air distributor which on the top of the drier after filtering and heating. The hot air in spiral form equably enters into the drying room. When liquid raw material is passing through the high-speed centrifugal sprayer on the top of the tower, it will be rotated and sprayed into the extremely fine mist liquid beads. Raw material can be dried to the final products instantly while it contact with the heated air. The finished products are discharged continuously from bottom of the drying tower and cyclones segregator. The waste gas is discharged from blower.

FEATURES

1.The drying speed is rapid. When liquid raw material is atomized, the surface of the material will be enlarged greatly. 95% - 98% of water can be evaporated instantly in the hot airflow and the drying is only a few seconds. This dryer is especially suitable to dry the heat sensitive material.
2.The uniformity, flow capability & solubility of the dryer are very good. The finished products have high quality and high-purity.
3.Simple and stable operation, convenient control and debugging, easy to achieve automatic operation.
4.The production process is simple, The dryer can dry the liquid material which contains 40%-60%(90% for special materials) of moisture into powder at once. There’s no need for smashing or sieving after drying so the operational environment is clean and in healthful condition, it also can avoid powder flying in the air during drying process.

APPLICATION

Chemical Industry: Sodium Fluoride (potassium), Basic Dyes & Pigments, Dyes Intermediates, Fertilizer, Formic Silicic Acid, Catalyst, Sulfuric Acid Agent, Amino Acid, White Carbon Black, and etc.
Plastic Resin: AB, ABS Emulsion, Urea-formaldehyde Resins, Phenolic Resins, Urea Formaldehyde Resins, Polyethylene, Polyvinyl Chloride, and etc.
Food Industry: Lipid-rich Milk, Armpit Protein, Cocoa Milk Powder, Substitute Milk, Hunting Blood Meal, Egg White (Yellow), Chicken Juice, Coffee, Instant Tea, Seasoning Meat, Protein, Soybean, Peanut Protein, Hydrolyzate, and etc.
Sugar: Corn Syrup, Corn Starch, Glucose, Pectin, Maltose, Potassium Sorbate, and etc.

TECHNICAL PARAMETERS

Dimension / Model	5	25	50	150	200-2000
Inlet Temperature °C	140-350 automatic control
Outlet Temperature °C	80-90
Max. Evaporation Capacity (kg/h)	5	25	50	150	200-2000
Atomizing Method	compressed air drive	mechanical drive
Revolution (r.p.m)	25000	18000	18000	15000	8000-15000
Revolution (r.p.m) Diameter of Atomizing Disc (mm)	50	120	120	150	180-240
Heat Source	electricity	steam+electricity	steam+electricity, oil, oil fuel, hot air furnace
Max. Heating Power (kw)	9	36	72	99
Overall Dimensions（L×W×H）(m)	1.8×0.93×2.2	3×2.7×4.26	3.5×3.5×4.8	5.5×4×7	depends on actual situation
Dried Powder Restoring Rate (%)	≥95

Notes: The evaporated amount of water is related to the characteristics of raw materials and the temperature of inlet air and outlet air. When the temperature of outlet air is 90°C, the water evapo rated curve is listed in above table (for reference only). If the product have been improved or updated by new technology, the related parameters will be change accordingly!

Attention to order

◎Liquid name and property: Solid contents(or water contents), viscosity , surface tension and PH value.
◎Dry powder density residual water contents allowed, particle size, and maximun temperature allowed.
◎Output: shift time daily .
◎Energy that can be supplied: steam pressure, electricity properly , fuel of coal, oil and natural gas .
◎Control requirement: whether or not the inlet and outlet temperatures should be controlled.
◎Powder collection requirement: whether it’s necessary to use cloth bag lter and the requirement of the environment of the exhausted gas .
◎Other special requirements.

Technical Parameter

Size	A	B	C	D	E1	E2	F	G	H	I
LPG-25	1290	3410	4260	1800	1200	1200	1000	1700	1300	1550
LPG-50	1730	4245	5100	2133	1640	1640	1250	1750	1800	1600
LPG-100	2500	5300	6000	2560	2100	2100	1750	1930	2600	1780
LPG-150	2800	6000	7000	2860	2180	2180	1970	2080	3050	1960
LPG-200	2800	6600	7300	3200	2300	2300	2210	2250	3050	2100
LPG-300	2800	8000	8700	3700	2800	2800	2520	2400	3040	2250
